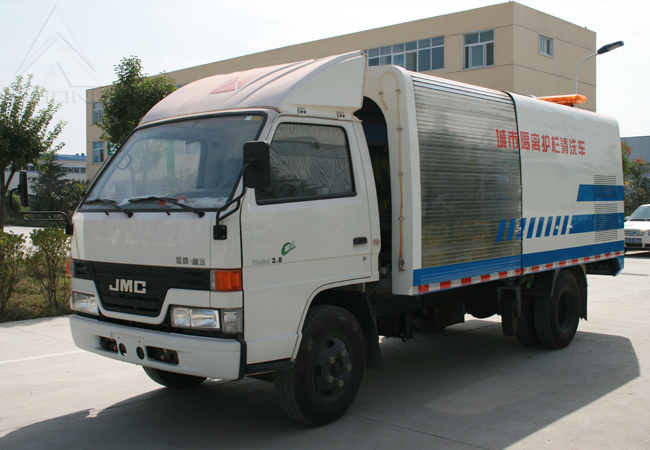

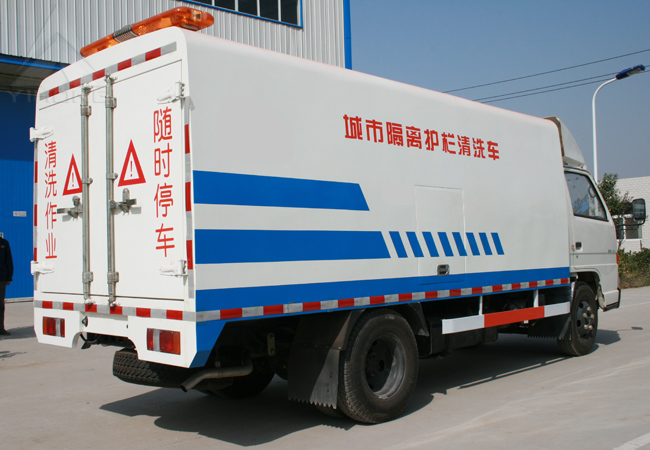

Median Barrier Sweeper YHQX5040
Applications
:

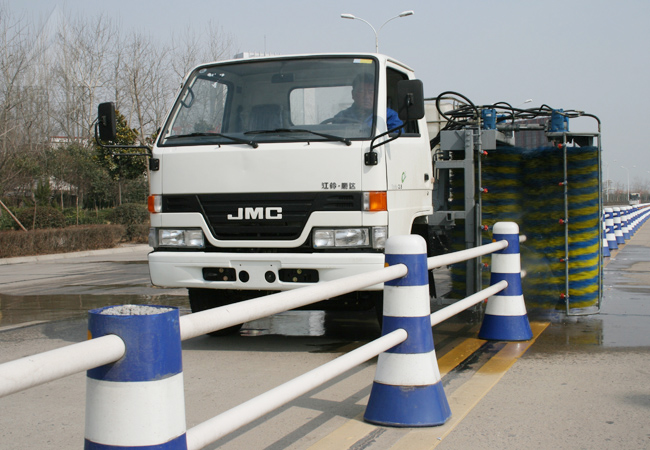

This median barrier sweeper is applied to wash urban median barriers and walls on roadsides. It is also available in hydro pump and high pressure gun to customize individual needs for the purpose of eliminating posters and scouring sculptures.
- This median barrier sweeper is applied to wash urban median barriers and walls on roadsides. It is also available in hydro pump and high pressure gun to customize individual needs for the purpose of eliminating posters and scouring sculptures. As a new generation multifunctional road sweeper, this equipment can be used to scrub all types of urban median barriers in full automatic and speedy way.
- 1. This median barrier sweeper is s equipped with air conditioning, heater, power steering system, and high-quality CD player, making driving easy.
2. This vehicle uses Isuzu engines (model JX493ZLQ), Euro III emission standards, reliable and powerful.

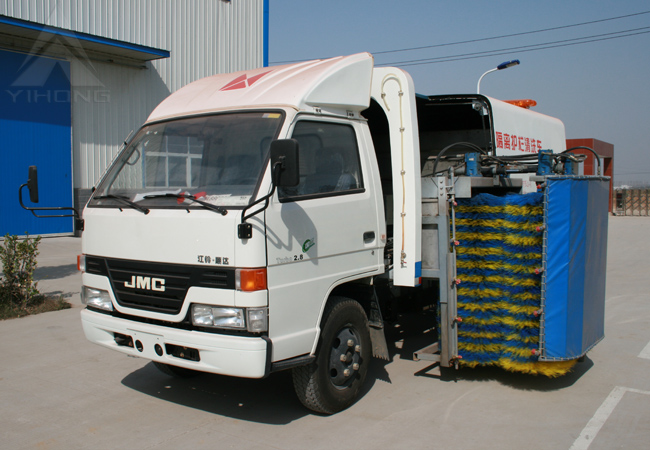

3. The brush rollers are built-in, and the locus is adjustable based on the width and height of barrier, easy to operate.
4. Brush rollers may adjust height and width based on median barriers, extensive use.
5. The cleaning system is driven by imported advanced hydraulic motor to guarantee the power and reliability during work.
6. The water pump adopts advanced ZMB240 high pressure pump, high performance flushing result.

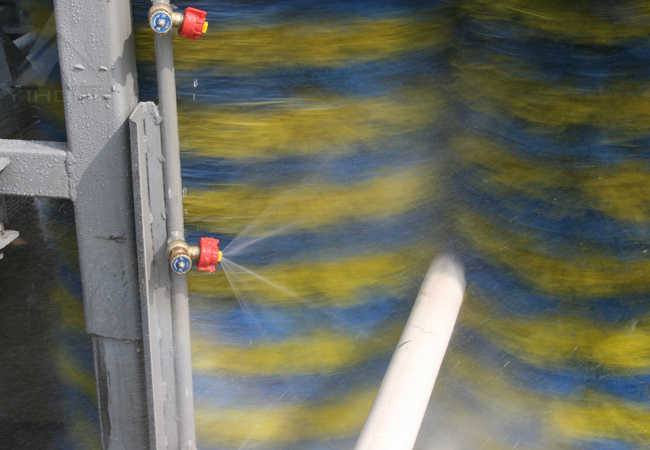

7. Water sprinkler system provides two-stage water filter, and guarantees that nozzle is not going to jam.
8. Equipped with warning light that ensure safety during the operation.
9. Using the hydraulic unit to achieve all movements.
Median Barrier Sweeper YHQX5040
|
Model |
YHQX5040 |
|
Overall dimensions |
5960x1900x2650 mm |
|
Vice-fan engine model |
JX493G3 |
|
Rated Power |
57 kw |
|
Cleaning height |
300-1300 mm |
|
Cleaning speed |
2-9 km/h |
|
Cleaning Width |
0-260 |
|
Rolling-brush rotation speed |
400-800 r/min |
|
Water tank capacity |
2.3 m³ |
|
Chassis Parameters |
|
|
Chassis Model |
JX1061TG23 |
|
Fuel type |
Diesel |
|
Wheel tread (front/rear) |
1385/1425 mm |
|
Wheel base |
3360 mm |
|
Number of tires |
6 |
|
Tires specification |
7.00R16LT |
|
Maximum running speed |
100 km/h |
|
Passengers |
2 |
