Towed Road Sweeper YHB100
Applications
:
It is mainly used in the field of sweeping various roads and airport.It is capable of sweeping sand, stones, stone chips, cinder, wastepaper and leaves, equipped with the device of wet dust suppression.

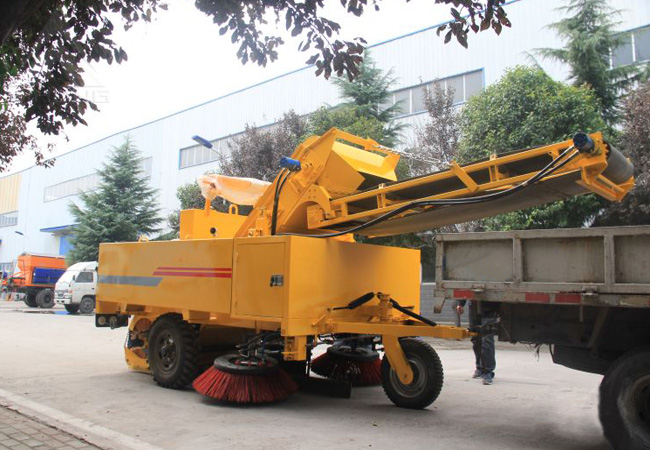

- This towed-type road sweeper YH100 can work attached to the trailer, and mainly consists of rear axle, frame, sweeping roller, drive system, power system, control system, hydraulic system and so on.
This machine is mainly used in the field of sweeping various roads and airport. It is capable of sweeping sand, stones, stone chips, cinder, wastepaper and leaves, equipped with the device of wet dust suppression.It is cost-effective and reliable,to sweep the road with mechanical driving.
- 1. The sweeping width can be adjusted from 2m to 2.4m.
2. The client can choose the trailer by themselves according to their country fact.
3. The machine is fully driven by hydraulic system, which is easy and reliable.
4. The scraper lifting conveyor can deliver soft and large waste.
5. The belt conveyor can horizontally carry the waste from the lifting conveyor to the hopper of the trailer.
6. The flexible roller can automatically adjust the contact surface with the ground.
7. The machine is suitable to road sweeping, particularly to wood block, branch, sandstone and so on. It performed competently in the face of plenty of rubbish.
Towed Road Sweeper YHB100
|
Model |
YH100 |
|
Overall Dimension(mm) |
5460x2000x2540 |
|
Cleaning Mode |
Pure Sweeping |
|
Power Mode |
Hydraulic driven fully |
|
Sweeping Speed(km/h) |
4-10 |
|
Sweeping Width(m) |
2-2.4 |
|
Roller Speed(r/min) |
180-260 |
|
Scraper Speed(r/min) |
80-120 |
|
Belt Conveyor Speed(r/min) |
120-160 |
|
Broom Speed(r/min) |
60-80 |
|
Fuel Consumption(L/h) |
2.5 |
